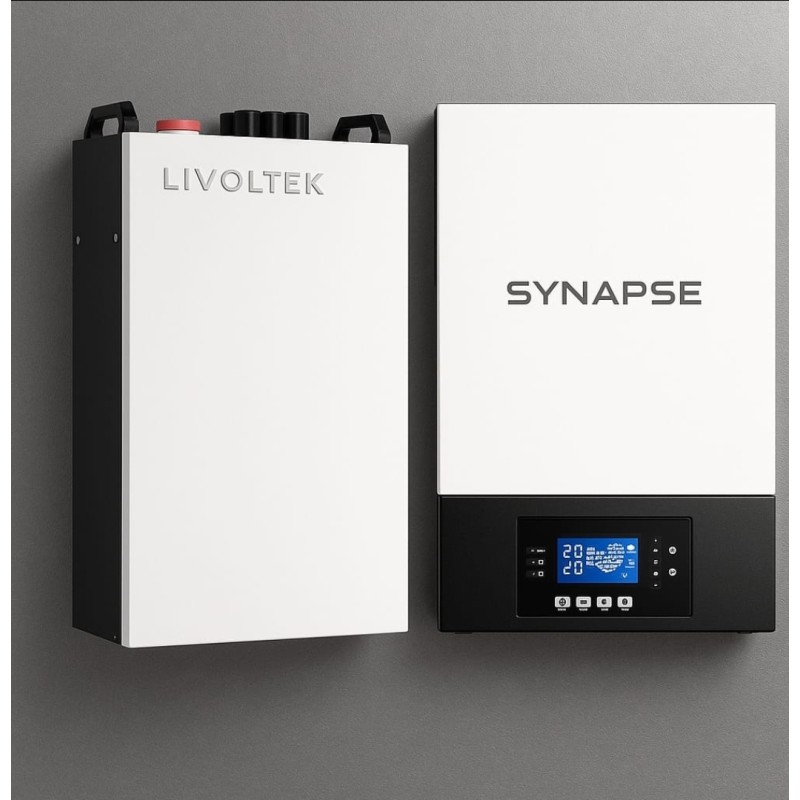

Synapse 5.0K Inverter & Livoltek 5Kw Battery Combo

Inverter

~ Reliable Off-Grid Power: Supplies 5000W of continuous power, suitable for running multiple appliances and systems independently from the grid.

~ Efficient Solar Energy Utilisation:Advanced 80A MPPT technology enhances solar energy capture, improving overall system efficiency.

~ Versatile Applications: Perfect for remote locations, emergency backup, and energy independence.

Main Features:
~ Power Output: 5000W continuous power capacity.

~ DC Voltage: Operates at 48VDC.

~ MPPT Efficiency: 80A MPPT for optimal solar energy conversion.

~ Off-Grid Capability: Designed for standalone solar energy systems, ideal for remote and backup power solutions.

Comes equipped with a unique operating system and a built-in MPPT for solar applications. In addition, there is an optional AC input that will allow a battery bank to be charged by a grid or generator connection.

These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding. Another option is by reducing electricity bill when adding solar panels.

Pure Sine wave inverter

Battery equalization function to optimize battery performance

Technical Specifications:

- Rated Power: 5000W

- Voltage: 230V AC

- Surge Power: 5000VA

- Efficiency: 90-93%

- Transfer Time: 20ms for home appliances

- Waveform: Pure sine wave

Battery:

- Battery Voltage: 48V DC

- Floating charge Voltage: 5V DC

- Overcharge Protection: 66V DC

Solar Charger & AC Charger:

- Max PV Array Power: 4000W

- Max PV Array VOC: 145V DC

- MPPT Range @ Operating Voltage: 60 ~ 115V DC

- Max Solar Charger Current: 80A

- Max AC Charger: 60A

 Battery Specifications

Battery Type: LFP

Nominal Voltage: 51.2V

Operating Voltage Range: 43.2V ~ 57.6V

Nominal Capacity: 100AH

Nominal Energy: 5.12kWh

Depth Of Charge: 90%

Usable Energy: 4.6kWh

Dimensions

Dimension (WDH): 335*622*135.5 mm

Weight: 42.6kg

Performance Max. Charge/Discharge

Current: 100A/100A

Operating Temperature: Charge: 0°C ~ 50°C

Discharge: -10°C ~ 55°C

Operating Humidity: 5% ~ 95%

Storage Temperature: -20°C ~ 60°C

Operating Altitude: Below 4000m

Communication: RS485/CAN

Scalability: Up to 5 Modules/25kWh

Cooling Type: Natural Ingress

Protection: IP21/IP65

Cycle Life: 6000 Cycles

Standard Warranty: 5 Years

Authentication Level: IEC62619/CE/UN38.3
