Sunsynk Lynks 8kW Hybrid Inverter

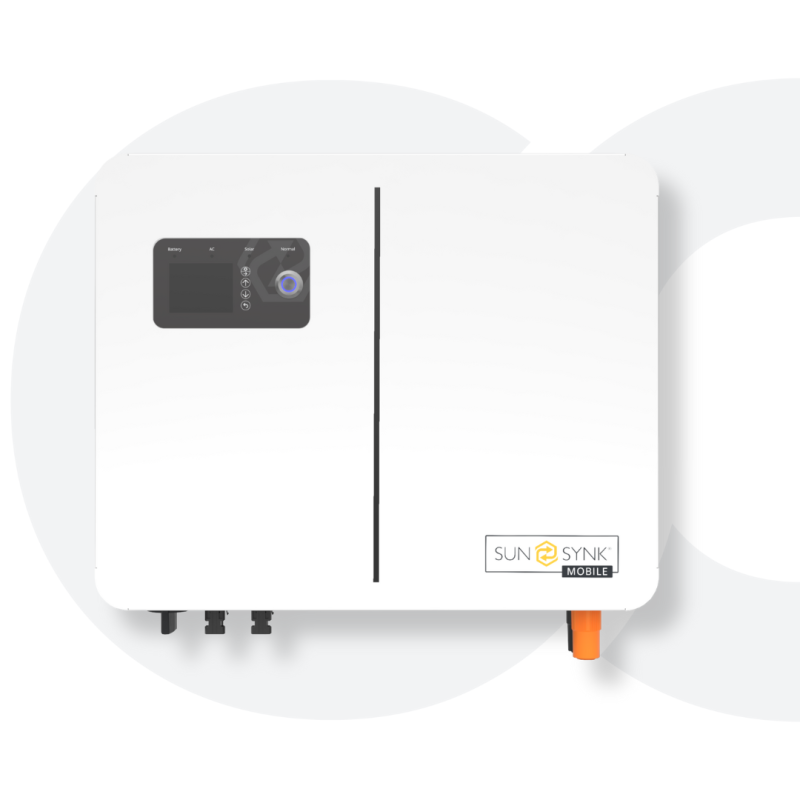

Sunsynk 8kW Lynks Hybrid Inverter

The 8kW Sunsynk Lynks Inverter is designed to deliver efficient, smart energy management for various solar setups. Because of its 8kW power capacity, it handles medium-to-large loads with ease. It’s suitable for homes, offices, farms, and small commercial systems.

Thanks to its hybrid technology, it manages solar panels, battery storage, and grid supply seamlessly. Therefore, you can enjoy backup power during outages or load shedding while optimizing solar energy usage.

The inverter features dual MPPT solar charge controllers, which maximize solar energy harvest. As a result, it adapts well to varying sunlight conditions and panel orientations.

Moreover, the Lynks inverter supports a wide range of battery types, including lithium and lead-acid batteries. This flexibility allows users to select the best energy storage option for their needs.

Because it supports real-time monitoring via Wi-Fi and a mobile app, you can track your system’s performance anytime. This insight helps you manage energy usage effectively and troubleshoot any issues early.

Its compact and robust design makes installation simple, whether mounted on the wall or placed inside a battery cabinet. Additionally, the Lynks inverter is designed to operate reliably in harsh weather conditions.

You can also connect multiple Lynks inverters in parallel for greater capacity, making it suitable for system expansion as energy needs grow.

In summary, the 8kW Sunsynk Lynks Inverter is a smart, efficient, and flexible solution for modern solar energy systems.

Model Lynks 8kW
Battery Input Parameters
Supported Battery Type Li-Ion or Lead-acid
Nominal Battery Voltage 48V
Battery Input Voltage Range 40~60V
Max. Charge Voltage ≤60V (Configurable)
Max. Charge Current 150A (Configurable)
Max. Discharge Current 180A (Configurable)
Battery Capacity (Recommended) 100~2000Ah
Charge for Li-Ion Battery Pack Communicating with BMS of Battery Pack
PV String Input Parameters
Max. DC Input Power 10000W
DC Input Voltage 500V
MPPT Voltage Range 120-450V
Start-up Voltage 150V
Max. Input Current 23A x 2 = 46A (2 MPPT Channels)
AC Output Parameters (Back-Up)(Feed to Essential Load)
Max. Output Power 8000W
Max. Output Apparent Power 8000VA
Peak Output Apparent Power 16000VA
Max. Output Current 36A
Nominal Output Voltage 220/230/240Vac Single-Phase (Configurable)
Nominal Output Frequency 50/60Hz (+/-0.2%) (Configurable)
Max. Bypass Current 42A
Shift Time (Bypass and Inverter) 10ms
Output THDv (Resistor Load) <3%
AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load)
Max. Input Power 8000W
Max. Output Power (Feed to Home Load) 8000W
Max. Apparent Input Power 8000VA
Max. Apparent Output Power 8000VA
Nominal Input/Output Voltage 220/230/240Vac (Auto Adjusted to Fit Home Grid)
Nominal Input/Output Frequency 50/60Hz (Auto Adjusted to Fit Home Grid)
Max. Bypass Current 42A
Shift Time (Bypass and Inverter) 10ms
Efficiency
Max. Efficiency 97.6%
Max. Battery to Load Efficiency 94.0%
Europe Efficiency 97.6%
MPPT Efficiency 99.9%
